Variogram models#

Parameters#

Variograms are set with set_vgm() using keyword arguments:

k.set_vgm(
    ivar=1, jvar=1,
    vtype="sph",
    nugget=0.05,
    sill=0.45,
    a_major=500.0,
    a_minor1=200.0,
    a_minor2=200.0,   # 3-D only; defaults to a_minor1
    azimuth=45.0,
    dip=0.0,
    plunge=0.0,
)

Parameter

Default

Description

vtype

(required)

Model type code (see table below)

nugget

0.0

Nugget effect (discontinuity at origin)

sill

1.0

Partial sill — variance contributed by this structure

a_major

1.0

Range along the major (longest) axis; see per-model meaning below

a_minor1

a_major

Range along the first minor axis (defaults to isotropic)

a_minor2

a_minor1

Range along the vertical axis (3-D only)

azimuth

0.0

Azimuth of major axis, degrees clockwise from North

dip

0.0

Dip angle, degrees positive downward

plunge

0.0

Plunge angle, degrees

append

True

True appends a nested structure; False replaces the current model

product

False

True multiplies with the preceding structure (non-additive nesting)

The dimensionless lag is \(r = h / a_\text{major}\) (after anisotropy scaling). The covariance is \(C(h) = \text{sill} \times \rho(r)\) where \(\rho(r)\) is the correlation function listed in the table below.

Supported model types#

Code

Name

Correlation \(\rho(r)\)

nug

Pure nugget

\(0\) for \(r > 0\); 1 at origin

sph

Spherical

\(1 - \tfrac{3}{2}r + \tfrac{1}{2}r^3\) for \(r < 1\), else \(0\)

exp

Exponential

\(\exp(-3r)\)

gau

Gaussian

\(\exp(-3.0625\,r^2)\)

hol

Hole effect

\(\cos(\pi r)\)

pow

Power

\(1 - r^{1.5}\) for \(r < 1\), else \(0\)

bsq

Bi-square

\((1 - r^2)^2\) for \(r < 1\), else \(0\)

cir

Circular

\(1 - \tfrac{2}{\pi}\!\left(r\sqrt{1-r^2} + \arcsin r\right)\) for \(r < 1\), else \(0\)

lin

Linear

\(1 - r\) for \(r < 1\), else \(0\)

cyc

GP periodic

\(\exp\!\left(-2\sin^2(\pi r)\right)\)

dco

Damped cosine

\(\exp(-3r)\cos(\pi r)\)

For sph, exp, and gau the practical range convention is used: \(\rho(1) \approx 0\) (spherical reaches exactly 0; exponential and Gaussian reach \(\approx 5\%\)), so a_major is the distance at which spatial correlation is effectively zero.

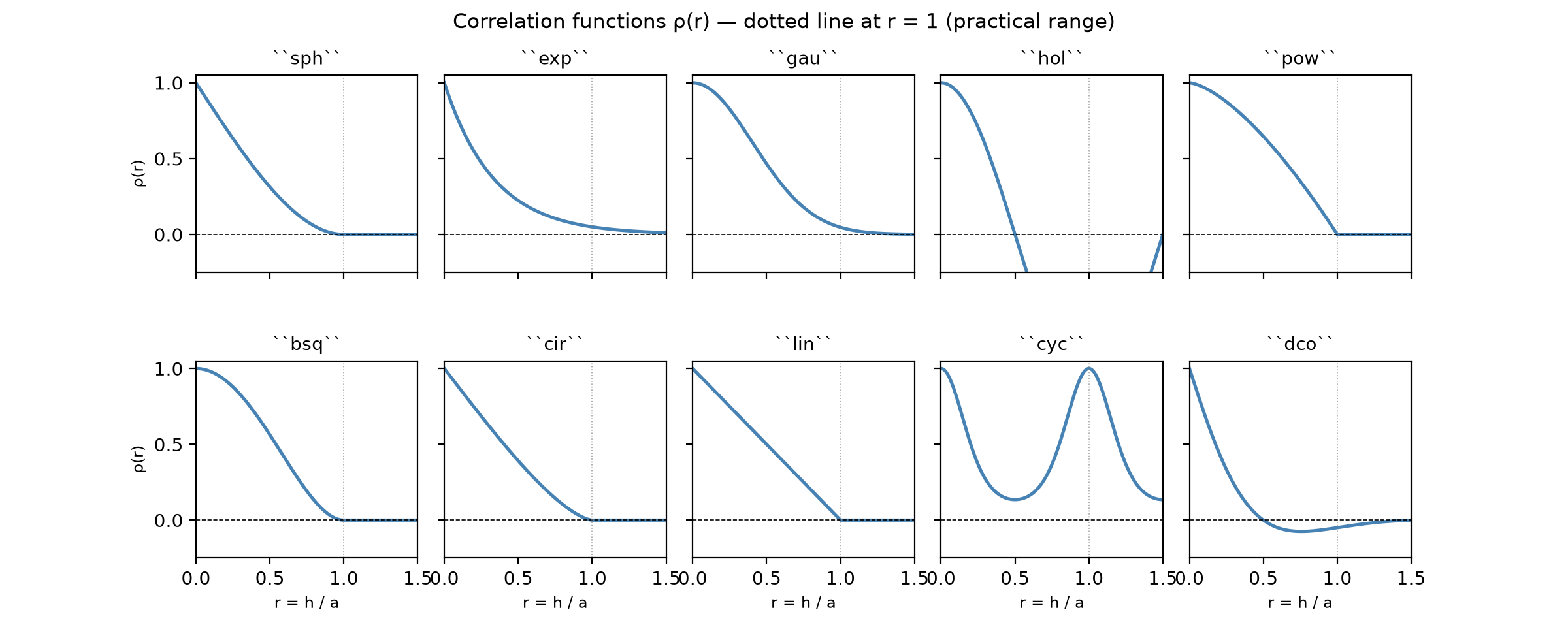

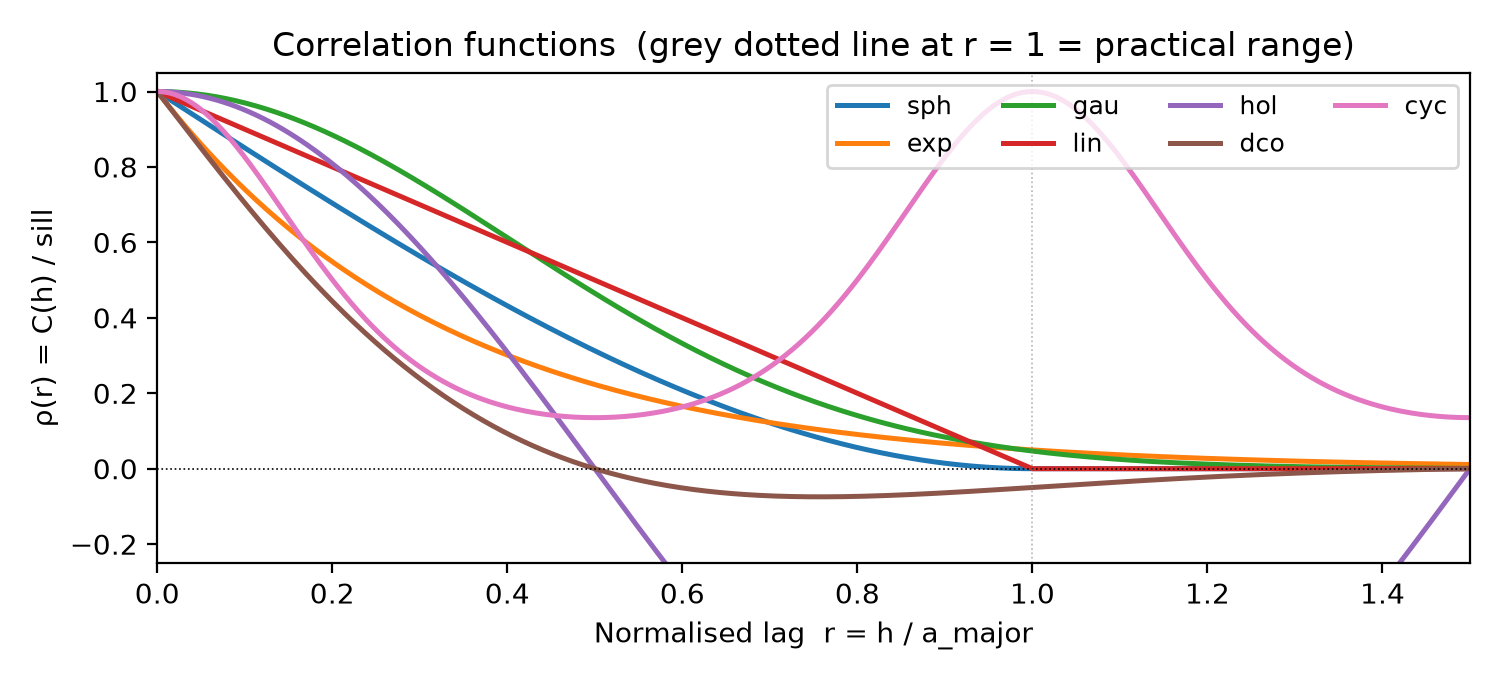

(png, hires.png, pdf)

_images/variogram_models-1.png

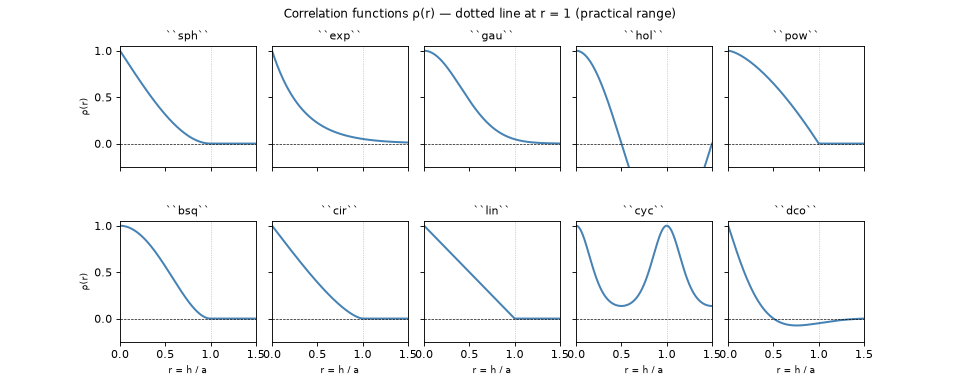

(png, hires.png, pdf)

_images/variogram_models-2.png

Model notes#

Hole effect (hol)#

\[C(h) = \text{sill} \cdot \cos\!\left(\frac{\pi h}{a}\right)\]

A pure cosine with period \(2a\). Correlation is zero at \(h = a/2\), reaches its most negative value (\(-\text{sill}\)) at \(h = a\), and returns to \(+\text{sill}\) at \(h = 2a\). Valid in 1-D and 2-D; use with caution in 3-D (not guaranteed positive-definite). The oscillation never damps, so the kriging matrix can be indefinite — the SSYTRF fallback solver handles this.

Damped cosine (dco)#

\[C(h) = \text{sill} \cdot \exp\!\left(\frac{-3h}{a}\right) \cos\!\left(\frac{\pi h}{a}\right)\]

An oscillating covariance that decays exponentially with distance. ``a_major`` controls both the decay length and the oscillation period simultaneously — the first zero-crossing is at \(h = a/2\) and the first negative lobe peaks at \(h = a\). Valid and positive-definite in all dimensions. Suitable when the cyclic pattern weakens over long distances, e.g. annual signals in a climate record with increasing measurement gaps.

GP periodic / ExpSineSquared (cyc)#

\[C(h) = \text{sill} \cdot \exp\!\left(-2\sin^2\!\left(\frac{\pi h}{a}\right)\right)\]

``a_major`` is the period — correlation returns to sill at every integer multiple of a_major. The model is always positive (correlation \(\geq \exp(-2) \approx 0.14\) at the half-period \(h = a/2\)) and is valid in all dimensions.

This is identical to the scikit-learn ExpSineSquared kernel with periodicity = a_major and length_scale = 1. The length-scale (smoothness within each cycle) is fixed; only the period is a free parameter.

Choosing between cyc and dco:

cyc

dco

Cyclicity

Strictly periodic — repeats forever

Quasi-periodic — damps with distance

a_major meaning

Period of oscillation

Decay length ≈ oscillation half-period

Correlation at \(h = a/2\)

\(\exp(-2) \approx 0.14\)

\(0\) (first zero-crossing)

Correlation at \(h = a\)

\(1\) (full repeat)

\(-\exp(-3) \approx -0.05\)

Min correlation

\(\exp(-2) > 0\) (always positive)

Negative — can cause Cholesky failure

Good for

Annual cycles, tidal data, repeating spatial patterns

Damped oscillations, waves losing energy with distance

Single-structure model#

k.set_vgm(ivar=1, jvar=1,
          vtype="sph", nugget=0.05, sill=0.95, a_major=500.0)

Nested (multi-structure) model#

Call set_vgm multiple times. Each call appends one structure (append=True is the default):

k.set_vgm(ivar=1, jvar=1, vtype="nug", nugget=0.05, sill=0.0,  a_major=1.0)
k.set_vgm(ivar=1, jvar=1, vtype="sph", nugget=0.0,  sill=0.45, a_major=500.0, a_minor1=200.0, azimuth=45.0)
k.set_vgm(ivar=1, jvar=1, vtype="exp", nugget=0.0,  sill=0.50, a_major=800.0)
# total sill = 0.05 + 0.45 + 0.50 = 1.0

The variogram \(\gamma(h) = \text{sill} - C(h)\) for each structure stacks additively:

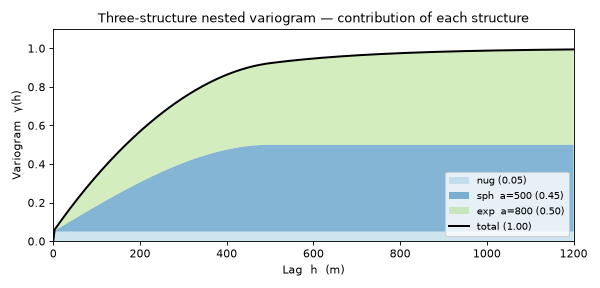

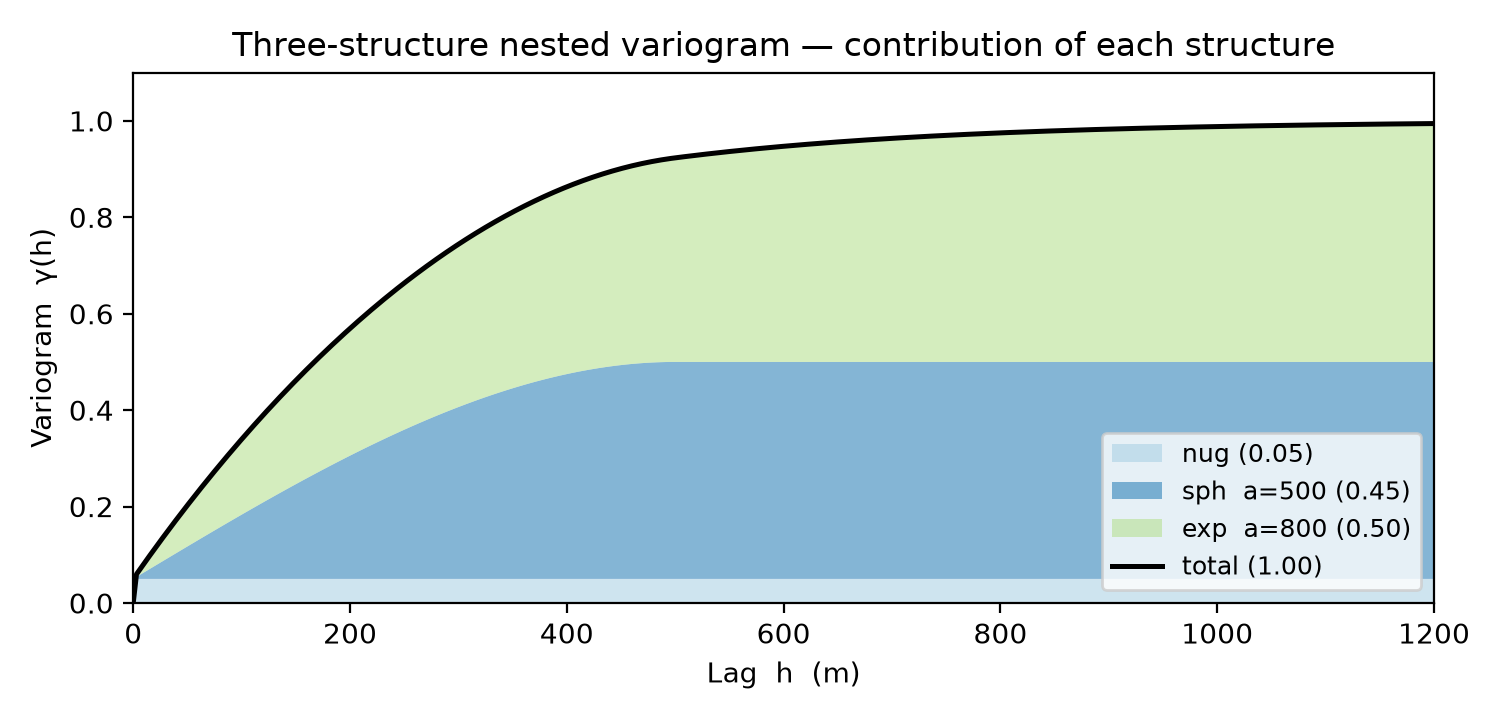

(png, hires.png, pdf)

_images/variogram_models-3.png

Periodic + background trend#

A common pattern for time-series data with an annual cycle and a long-range trend:

k.set_vgm(ivar=1, jvar=1, vtype="nug", nugget=0.1, sill=0.0,  a_major=1.0)
k.set_vgm(ivar=1, jvar=1, vtype="cyc", nugget=0.0, sill=0.6,  a_major=1.0)   # period = 1 year
k.set_vgm(ivar=1, jvar=1, vtype="exp", nugget=0.0, sill=0.3,  a_major=5.0)   # long-range decay

Product variogram (non-additive nesting)#

Setting product=True on a set_vgm call multiplies the new structure with the immediately preceding one instead of adding it. The Schur product of two positive-definite covariance functions is always positive-definite, so validity is guaranteed regardless of the parameter values chosen.

The primary use case is independent control over the decay envelope and the oscillation period — something dco cannot provide because it ties both to the same a_major:

# dco: decay length AND period both governed by a_major
k.set_vgm(1, 1, vtype="dco", sill=1.0, a_major=1.0)
# C(h) = exp(-3h) cos(πh)  — first zero at h = 0.5, coupled to range

# Product exp × hol: independent ranges
k.set_vgm(1, 1, vtype="exp", sill=1.0, a_major=5.0)                 # slow decay envelope
k.set_vgm(1, 1, vtype="hol", sill=1.0, a_major=1.0, product=True)  # oscillation half-period = 1
# C(h) = exp(-3h/5) cos(πh)  — same period as dco(a=1), but envelope decays 5× more slowly

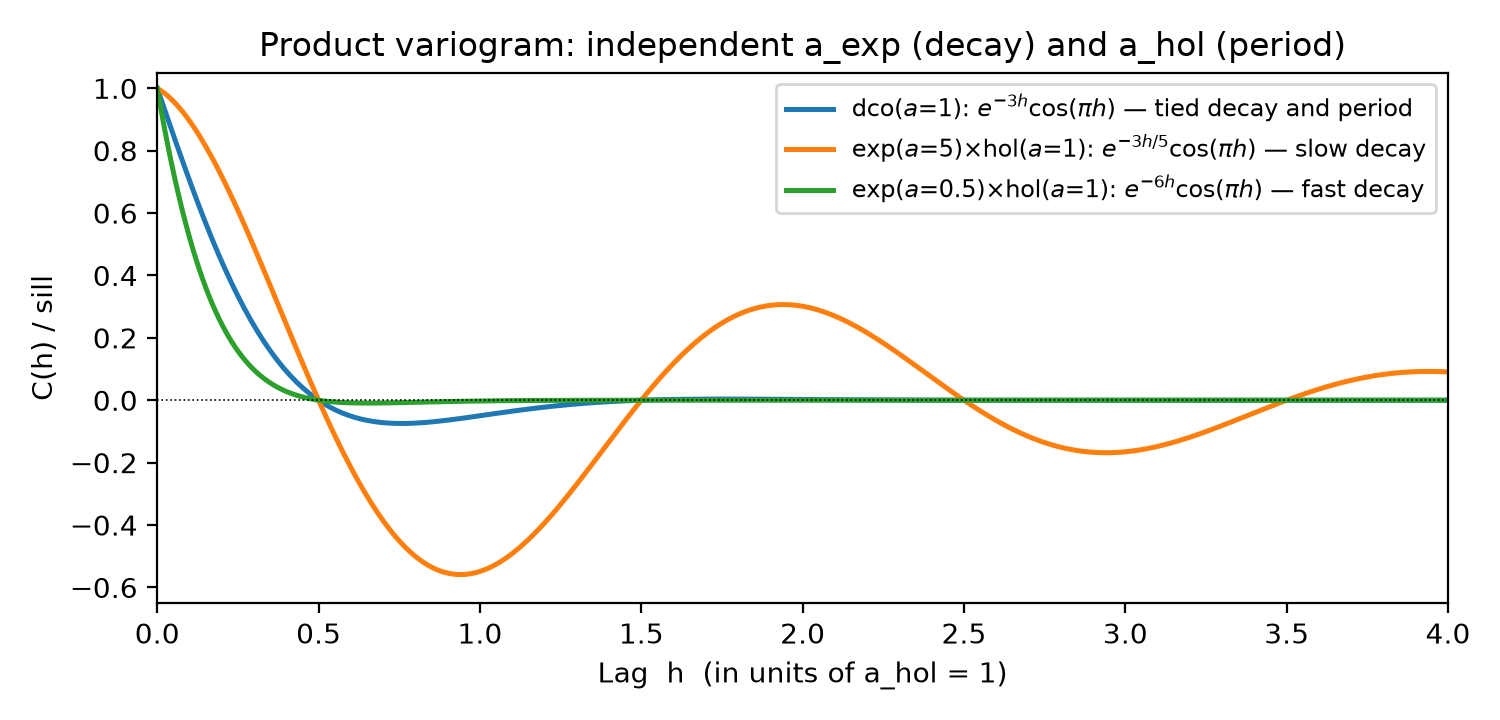

(png, hires.png, pdf)

_images/variogram_models-4.png

Rules for product structures:

  • product=True on structure k multiplies with structure k−1.

  • Both structures may have different a_major values (independent scales) but must share the same orientation (azimuth, dip, plunge).

  • Chaining three or more consecutive product=True structures multiplies left-to-right: A × B × C.

  • To add a second independent product group, place a non-product structure between the two groups.

Anisotropic model#

The rotation convention follows standard geostatistical practice:

  • azimuth: clockwise from North (Y-axis), in the XY plane

  • dip: tilt of the major axis below horizontal (positive downward)

  • plunge: rotation of the semi-axes around the major axis

  • a_major: range along the major (longest) axis

  • a_minor1: range perpendicular to major in the horizontal plane

  • a_minor2: range in the vertical direction (3-D)

At azimuth=0, dip=0, plunge=0 the major axis points North (Y direction).

k.set_vgm(ivar=1, jvar=1,
          vtype="sph",
          nugget=0.0, sill=1.0,
          a_major=1000.0, a_minor1=400.0,  # 2-D anisotropy
          azimuth=45.0)                     # major axis points NE

For 3-D add a_minor2 (vertical range) and dip / plunge.

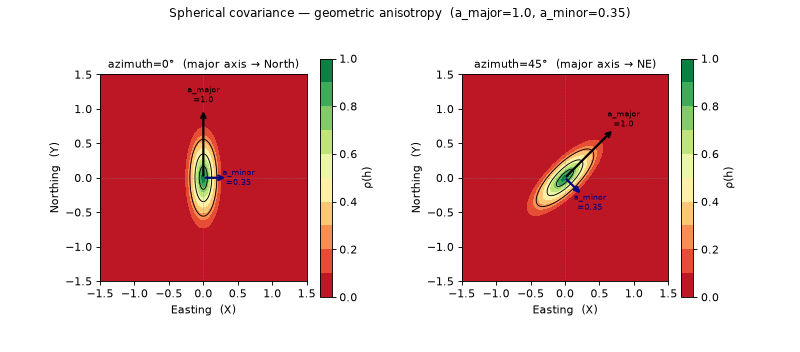

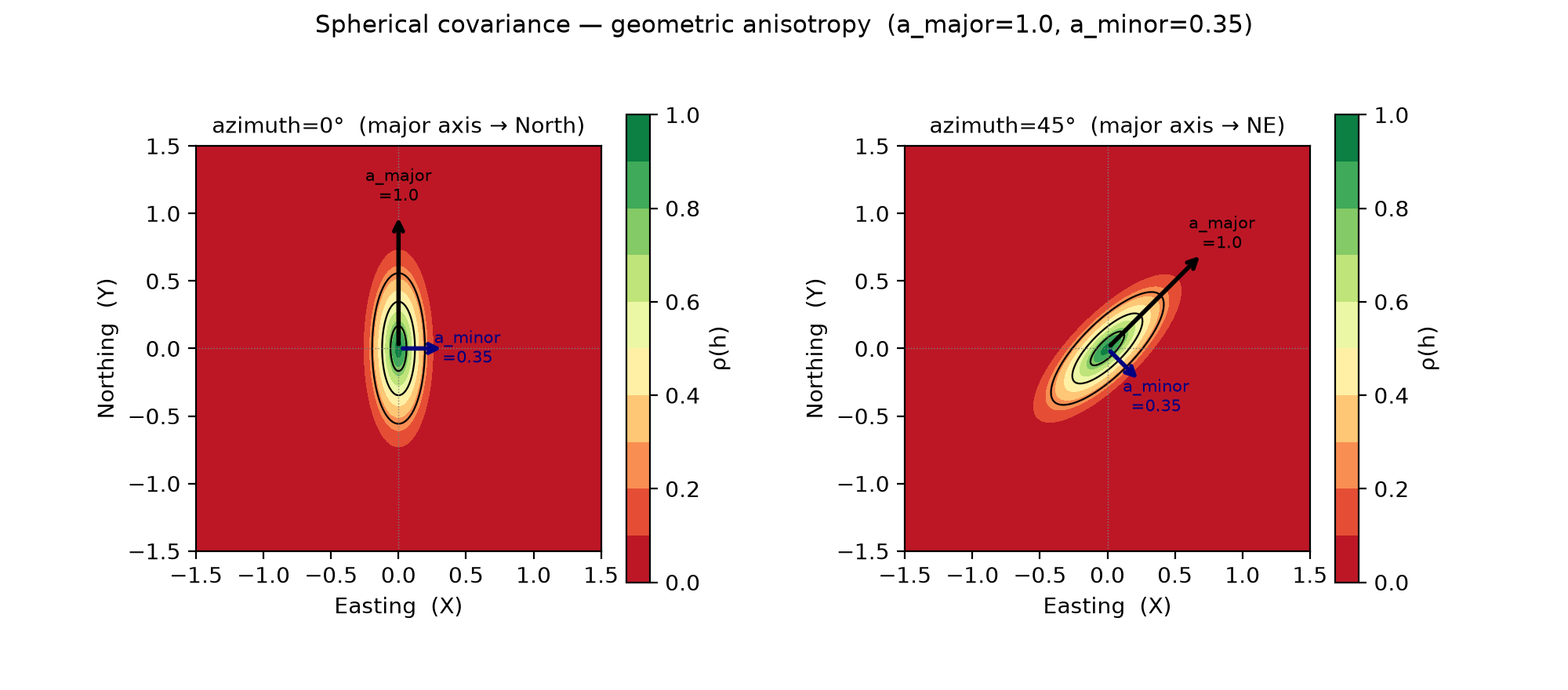

(png, hires.png, pdf)

_images/variogram_models-5.png

Replacing a variogram on a reused object#

When reusing a Kriging object with a different variogram, pass append=False on the first set_vgm call to clear the previous model:

# first run
k.set_obs(...)
k.set_vgm(ivar=1, jvar=1, vtype="sph", sill=1.0, a_major=500.0)
k.set_grid(...)
k.set_search(ivar=1)
k.solve()

# second run — different variogram
k.set_vgm(ivar=1, jvar=1, vtype="exp", sill=1.0, a_major=800.0, append=False)
k.solve()

Without append=False the second run would accumulate structures from the first run, silently doubling (or tripling) the total sill.

Linear Model of Coregionalisation (LMC)#

For co-kriging with variables 1 and 2, every nested structure k must satisfy the LMC constraint:

\[b_{12,k}^2 \leq b_{11,k} \times b_{22,k}\]

where b denotes the partial sill for each variable pair. Violating this makes the co-kriging matrix indefinite and will produce negative variances.

The correlation coefficient per structure is:

\[\rho_k = \frac{b_{12,k}}{\sqrt{b_{11,k} \times b_{22,k}}}\]

A safe starting point is b12 = 0.8 * sqrt(b11 * b22) (ρ = 0.8).

Example LMC:

rho = 0.8
b11, b22 = 0.7, 0.3
b12 = rho * (b11 * b22) ** 0.5

k.set_vgm(ivar=1, jvar=1, vtype="sph", nugget=0.0, sill=b11, a_major=1000.0, a_minor1=500.0)
k.set_vgm(ivar=2, jvar=2, vtype="sph", nugget=0.0, sill=b22, a_major=1000.0, a_minor1=500.0)
k.set_vgm(ivar=1, jvar=2, vtype="sph", nugget=0.0, sill=b12, a_major=1000.0, a_minor1=500.0)
