Ordinary kriging#

Ordinary kriging (OK) estimates an unknown value at a target location as a weighted average of nearby observations, with weights chosen so that the estimator is unbiased and has minimum variance.

Minimal example#

import numpy as np
from pykriging import ordinary_kriging

rng = np.random.default_rng(42)
obs_coord  = rng.uniform(0, 100, (50, 2))
obs_value  = rng.normal(5.0, 1.0, 50)
grid_coord = np.mgrid[0:101:5, 0:101:5].reshape(2, -1).T  # 21×21 = 441 points

est, var = ordinary_kriging(
    obs_coord, obs_value, grid_coord,
    vgm_spec=dict(vtype="sph", nugget=0.1, sill=0.9, a_major=40.0),
    nmax=20,
)
# est.shape → (441,)   var.shape → (441,)

Simple kriging#

Simple kriging (SK) treats the mean as known rather than estimating it from the data. Pass unbias=0 and a sk_mean:

from pykriging import Kriging

k = Kriging(ndim=2, nvar=1, unbias=0)
k.set_obs(ivar=1, coord=obs_coord, value=obs_value, nmax=20,
          sk_mean=float(obs_value.mean()))
k.set_vgm(ivar=1, jvar=1, vtype="sph", nugget=0.1, sill=0.9, a_major=40.0)
k.set_grid(coord=grid_coord)
k.set_search(ivar=1)
k.solve()
est, var = k.get_results()

Anisotropic variogram#

Specify different ranges along each axis. azimuth rotates the major axis clockwise from North (degrees):

from pykriging import Kriging

k = Kriging(ndim=2, nvar=1)
k.set_obs(ivar=1, coord=obs_coord, value=obs_value, nmax=20)
k.set_vgm(ivar=1, jvar=1,
          vtype="sph",
          nugget=0.05, sill=0.95,
          a_major=80.0, a_minor1=30.0,  # 8:3 anisotropy ratio
          azimuth=30.0)                  # NNE–SSW orientation
k.set_grid(coord=grid_coord)
k.set_search(ivar=1)
k.solve()
est, var = k.get_results()

Limiting the search neighbourhood#

nmax controls the maximum number of neighbours used per kriging system. A smaller nmax is faster but may reduce accuracy in sparse areas. maxdist adds a hard distance cutoff:

k.set_obs(ivar=1, coord=obs_coord, value=obs_value,
          nmax=15, maxdist=50.0)

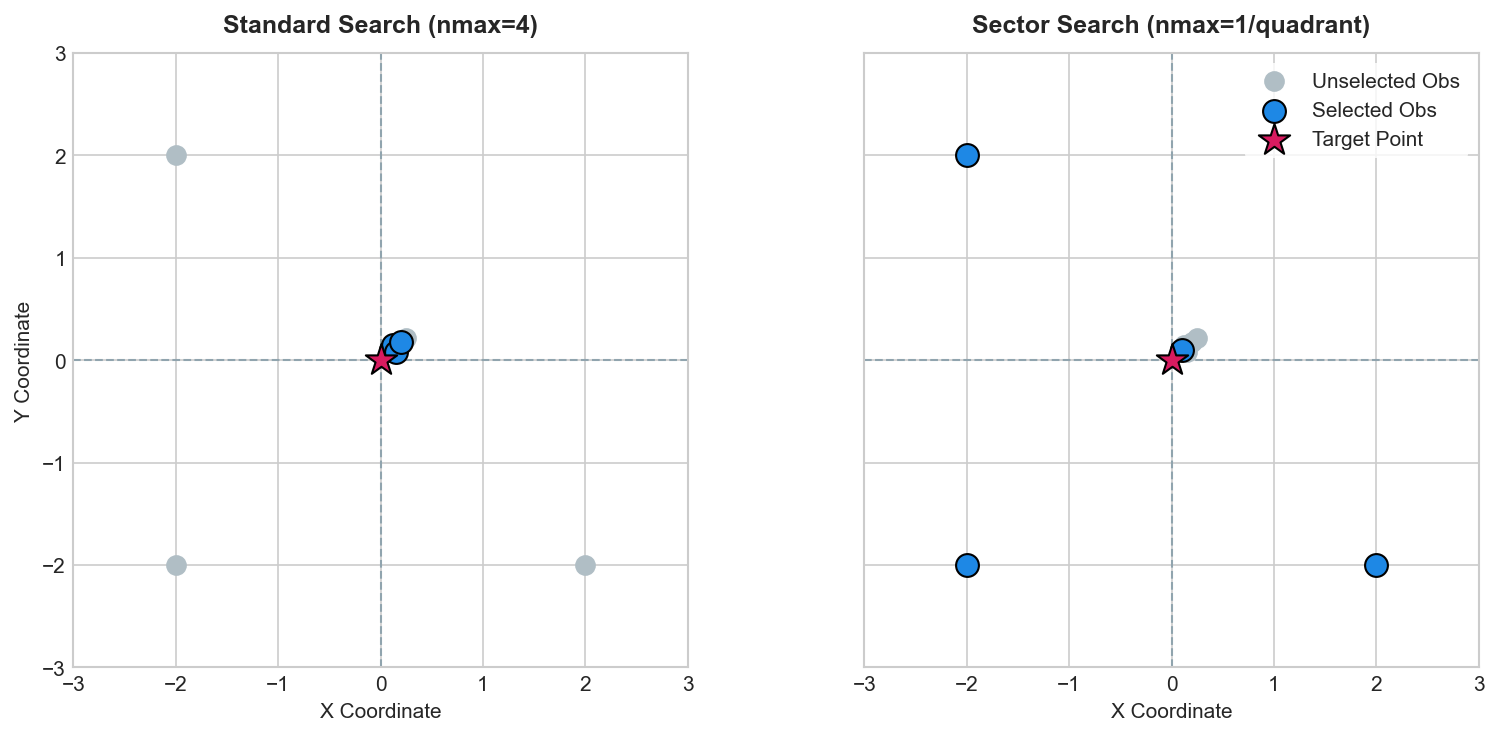

Sector search#

To prevent candidate neighbours from clustering in a single direction (which can happen when data is densely sampled along lines or clusters, leaving other directions unrepresented), you can enable sector search.

When sector_search=True is passed to set_search, the search space is divided into sectors centered on the target prediction point:

2D space: Divided into 4 quadrants.
3D space (and Space-Time kriging): Divided into 8 octants.

Under sector search, nmax (set in set_obs) acts as a limit per sector rather than a global limit. The search selects up to nmax closest neighbours from each quadrant/octant. This results in a maximum of 4 * nmax neighbours in 2D, or 8 * nmax in 3D/ST, ensuring a balanced spatial distribution around the estimation point.

# Enable quadrant/octant sector search
k.set_search(ivar=1, sector_search=True)

Observation coordinates are checked when set_obs is called. Duplicate coordinate tuples within the same variable are rejected because the search tree and kriging system require unique observation locations. Aggregate or remove duplicate observations before loading them.

Result clipping#

Clip estimates to a physically meaningful range with bounds:

k = Kriging(bounds=[0.0, 100.0])

Values outside the range are clamped after kriging, which avoids negative estimates for strictly positive quantities (e.g. porosity, concentration).

Reusing a Kriging object#

You can call set_obs, set_vgm, set_grid, set_search, and solve again on the same object to estimate a new dataset without recreating it. Use append=False on set_vgm to replace the previous variogram model:

k = Kriging(ndim=2, nvar=1)

for obs_c, obs_v in dataset_sequence:
    k.set_obs(ivar=1, coord=obs_c, value=obs_v, nmax=20)
    k.set_vgm(ivar=1, jvar=1, vtype="sph", sill=1.0, a_major=40.0,
              append=False)     # ← reset variogram each iteration
    k.set_grid(coord=grid_coord)
    k.set_search(ivar=1)
    k.solve()
    est, var = k.get_results()

Cross-validation#

Leave-one-out cross-validation reuses the same workflow, switching the grid to CV mode:

k = Kriging(ndim=2, nvar=1)
k.set_obs(ivar=1, coord=obs_coord, value=obs_value, nmax=20)
k.set_vgm(ivar=1, jvar=1, vtype="sph", nugget=0.1, sill=0.9, a_major=40.0)
k.set_grid_cv(ivar=1)           # estimation targets = leave-one-out positions
k.set_search(ivar=1)
k.solve()
cv_est, cv_var = k.get_results()

cv_est[i] is the kriging prediction at observation i using all other observations.
